Split Face Block Wall in Chicago's Bronzeville neighborhood
Video of water pouring out of Split Face Block Building
"My client was smelling musty wafts. When we lifted the capstone off the parapet wall to investigate, we could see water trapped in the wall core. I think about 3 gallons poured out of this section of the wall. After all the water was drained, we installed WickRight Coping Vent, WickRight Low-Slope Roof Vent and new metal copings. The last time we checked, the building was completely dried out."
– Bob Kelly, Owner WickRight
Split Face Block Walls leak. Concrete block walls leak. Jumbo brick walls leak (brick colored concrete). Masonry block, called CMU (concrete masonry units) in the construction industry, is extremely porous and it leaks.
Regular professional sealant applications and installing WickRight passive ventilation solves most leaking split face block issues permanently.
According to Decker Home Services split face block can absorb 3x its weight in water. We have performed testing that shows that CMU can absorb water until the entire block is completely saturated. After the block reaches homeostasis, then water will seep to the exterior and the interior.
More Information Coming Soon
Pictures coming soon
- June 1, 2023 - no rain for 3 weeks, hot and humid, AC needed
We received a call from a building owner in Belmont Terrace, who said, "there is water coming in under my baseboards!"
Her split face block building is soaking wet. With the sun beating down on the south facing wall, a physics phenomenon, known as solar drive, heated up the moisture trapped in the wall and pushed it toward the air conditioned interior, forcing water into the building at the through wall flashings which are installed at each story level -- close to where the baseboards and flooring meet.
Basic Physics - Wet moves to Dry, Hot moves to Cold.

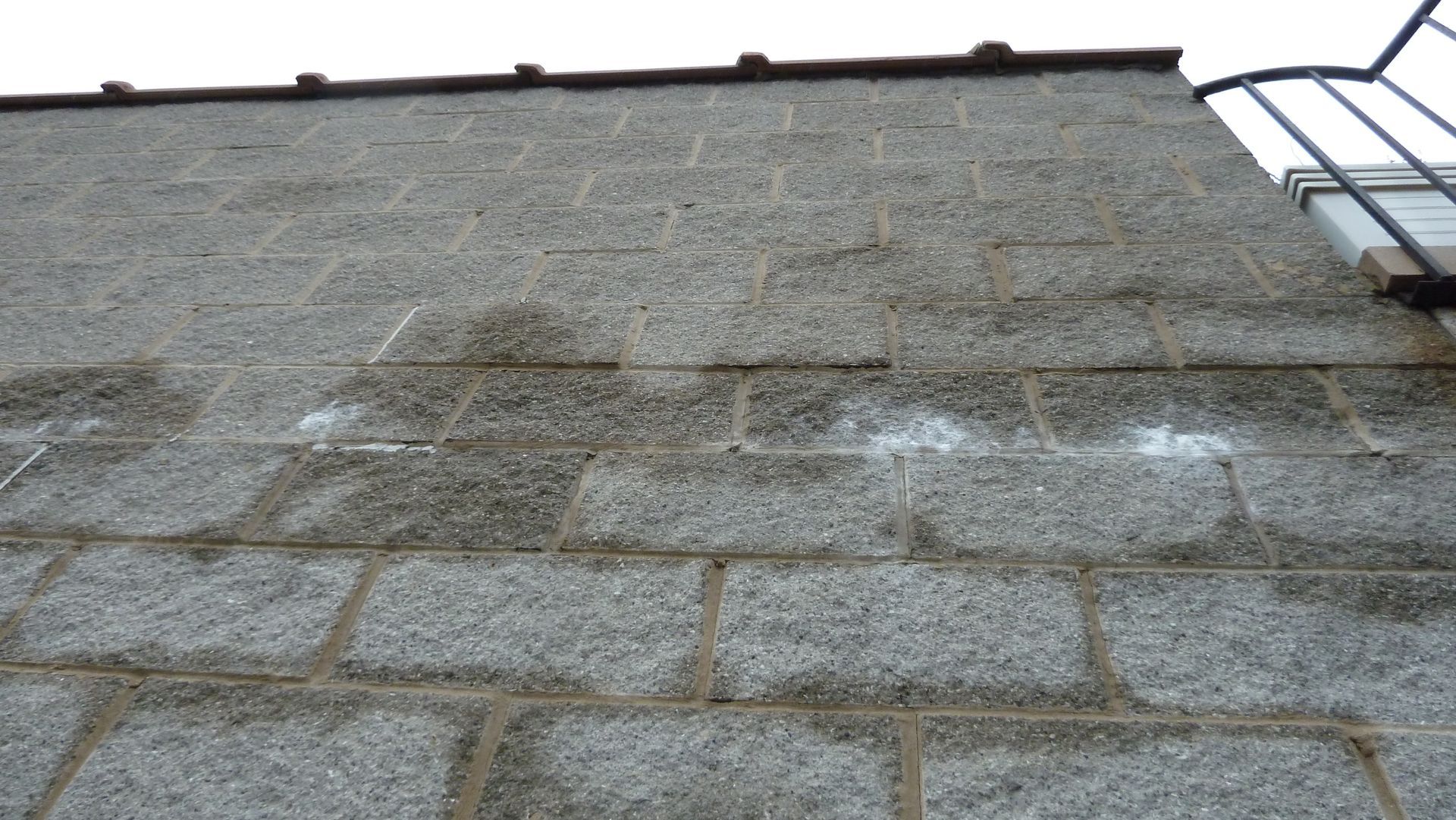

Leaking Split Face Block building in Wrigleyville
We are fixing Chicago's Wet Building Crisis. Working with home inspectors, we are educating building owners on building science, how to stage repairs and save their building while saving money at the same time.
We prefer to reinforce water damaged trusses rather than to replace them. When feasible, we install our patent-pending truss bracket, which saves our customer's substantial costs on materials and labor.
Read More ...
Buildings need to be flashed to protect from moisture intrusion and vented properly to exhaust trapped moisture vapor. WickRight Passive Ventilation® protects and vents buildings, reduces mold growth and improves indoor air quality.
Our masons are the best in Chicago, bar none. They understand old and new materials and provide superior sealant or elastomeric application so you receive the full benefit of sealant, and the full sealant manufacturer's warranty.
