Logan Square Parapet Vent Install

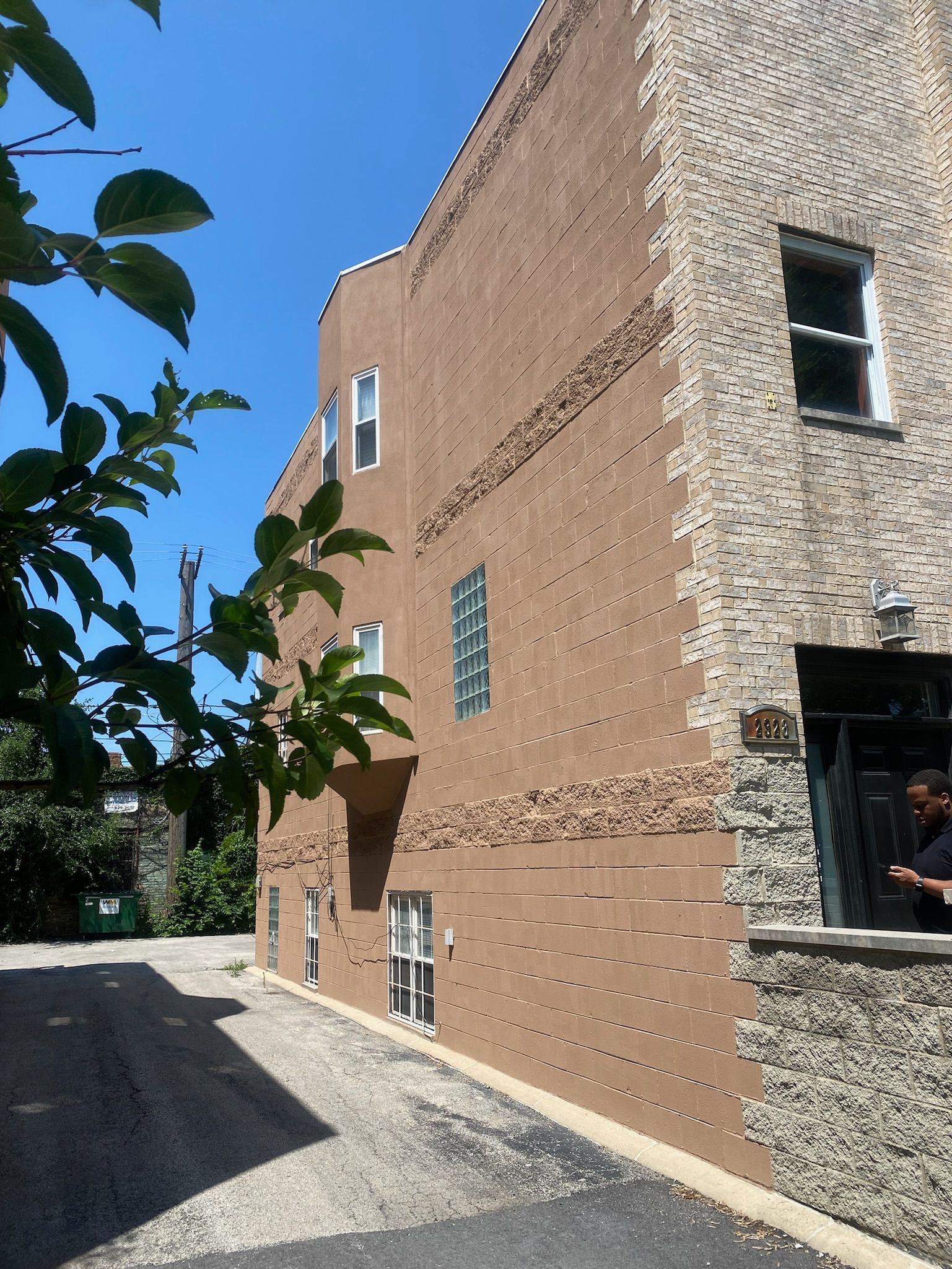

Front of brick apartment building in Logan Square

Leaking Brick and Split Face Block Apartment Building in Logan Square

Button

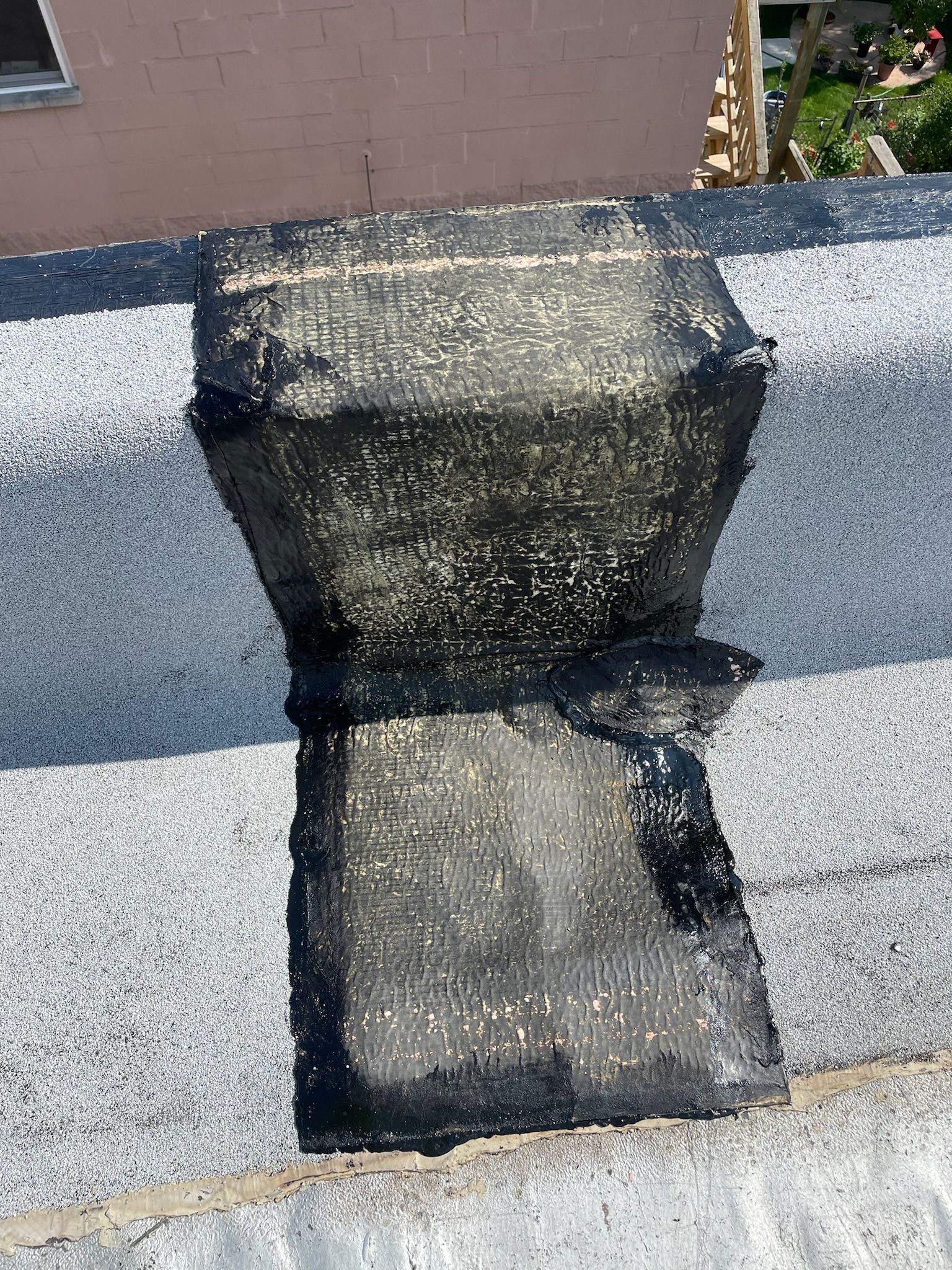

Patch on a flat roof with damaged roof membrane

Exisiting Roof Repair Patch goes over the parapet.

Button

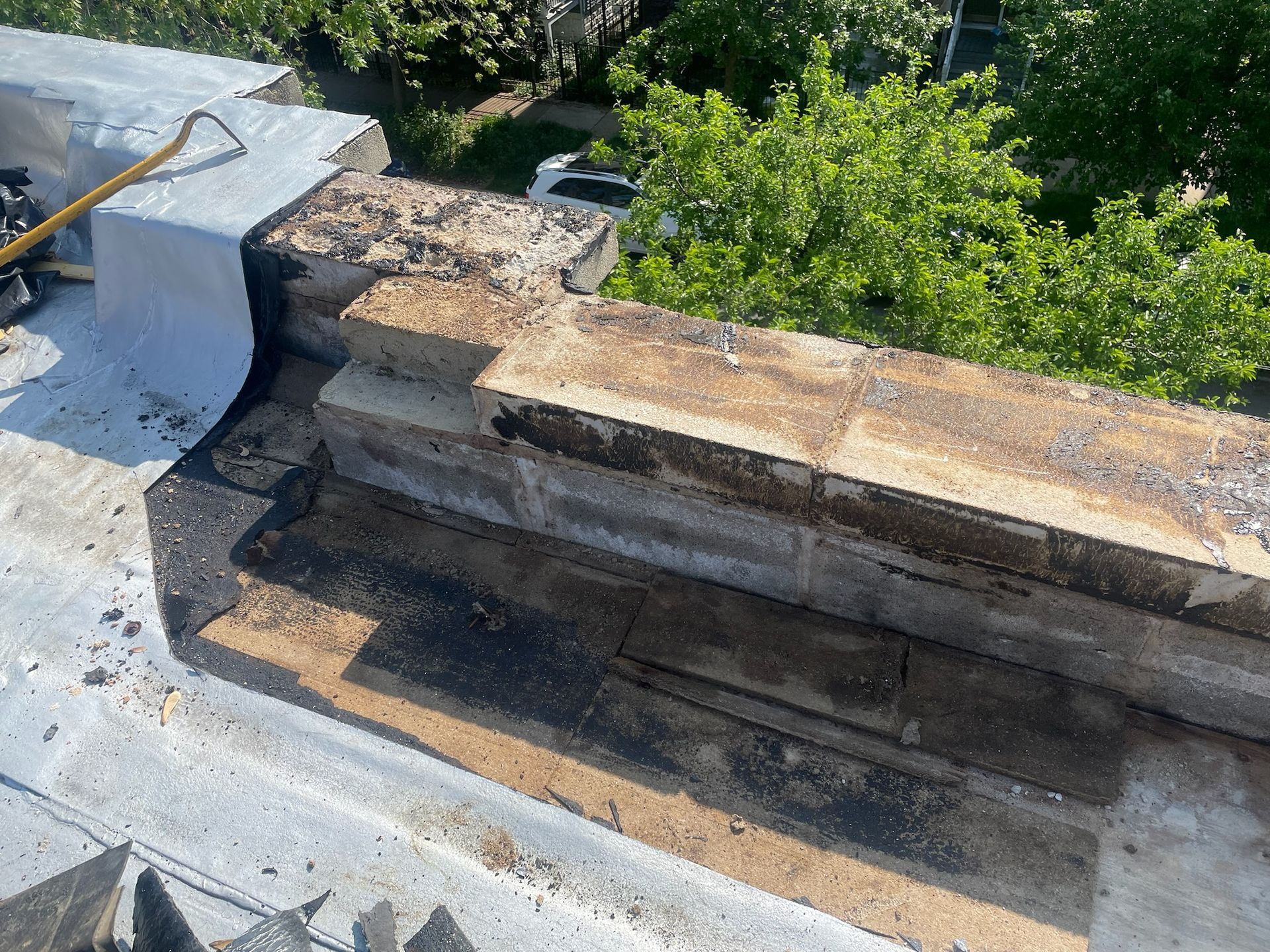

Removed roof membrane from rooftop parapet wall

Existing roof membrane removed from the capstones and parapet wall.

Button

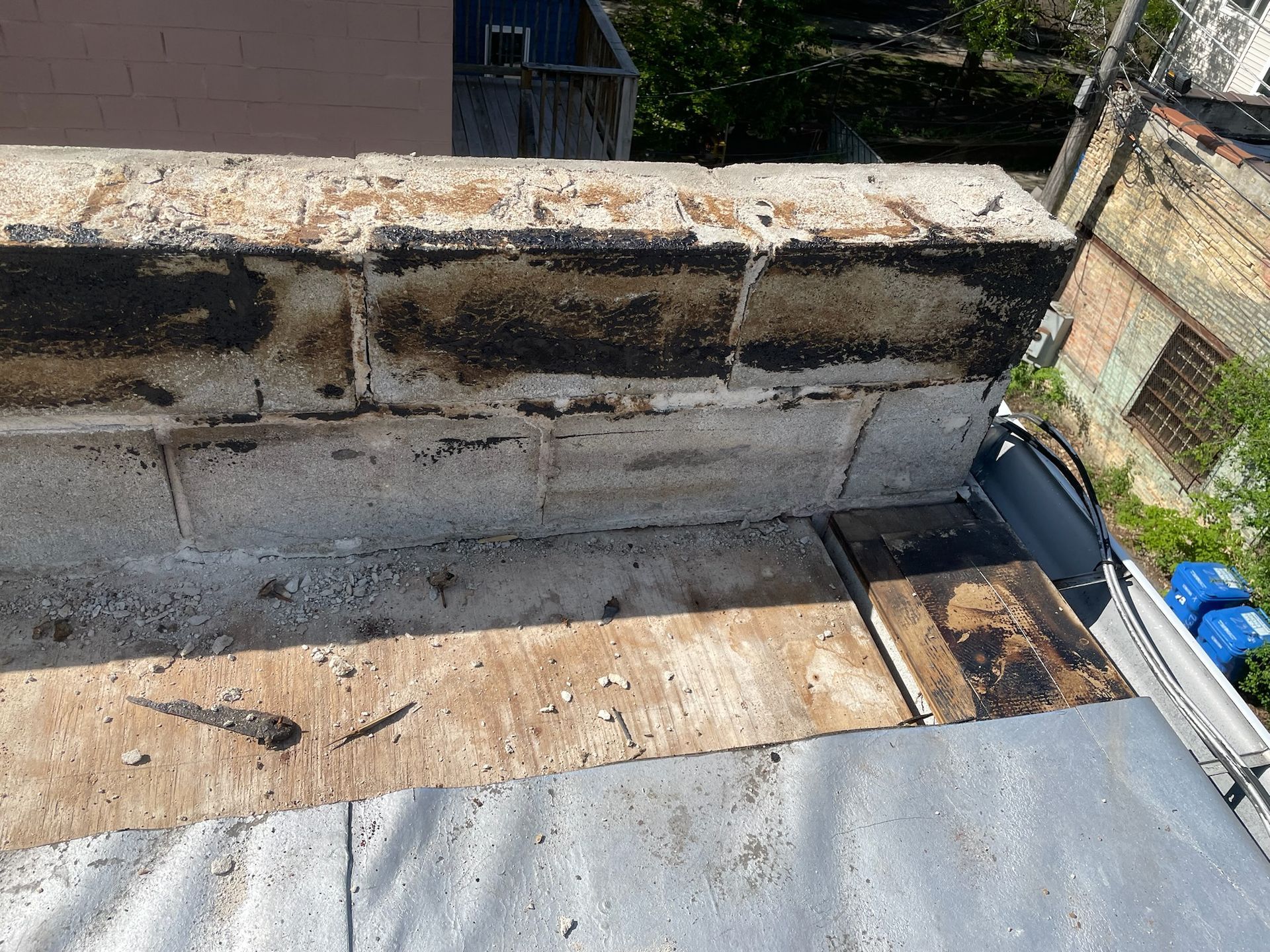

Removed roof membrane from rooftop parapet wall

Capstones removed from parapet wall reveals the parapet is fully grouted and some of the plywood rof sheathing is damaged.

Button

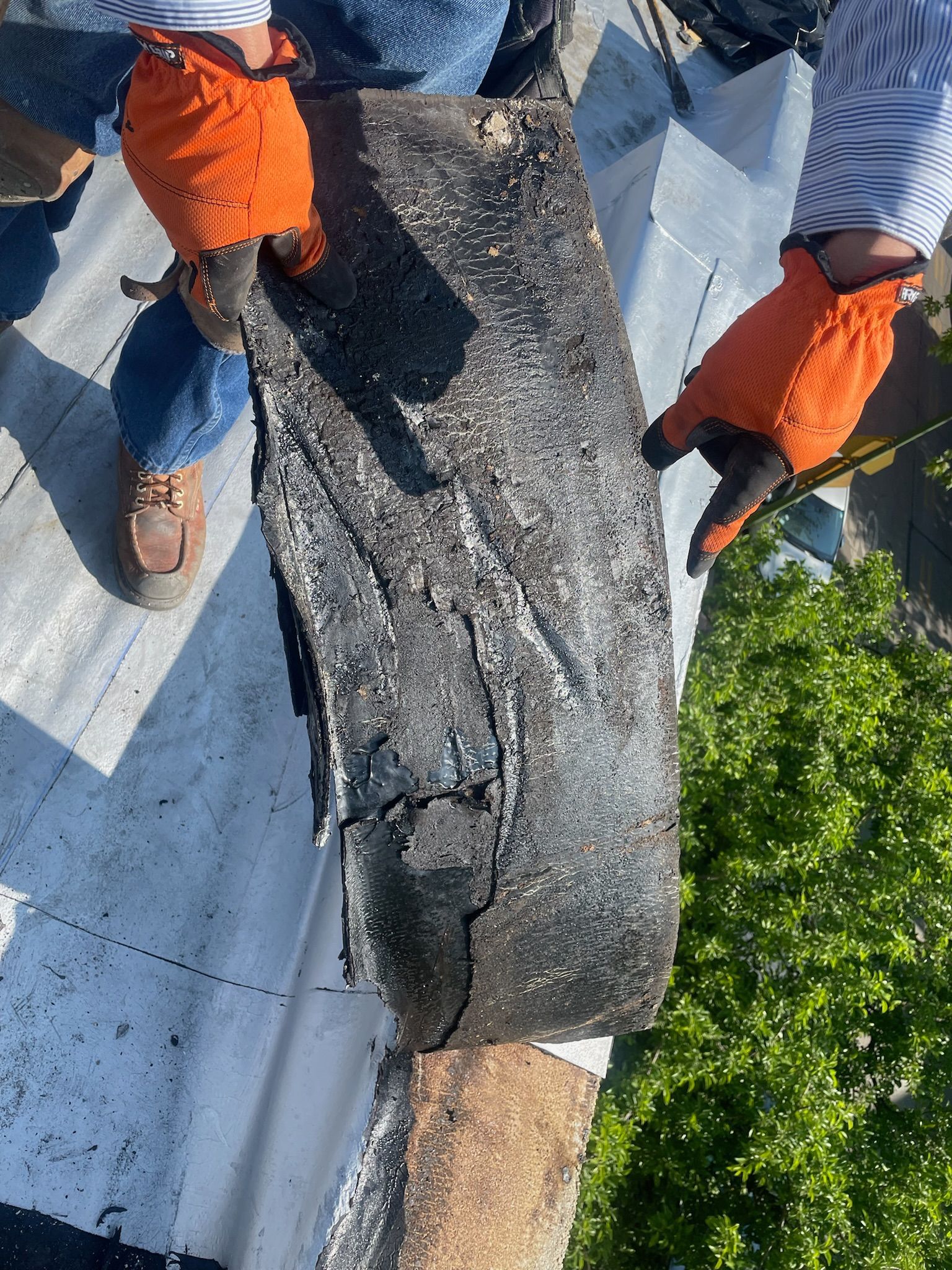

Worker showing a wet and damaged roof membrane

Roofing points out issues from the modified bitumen being removed from the walls.

Button

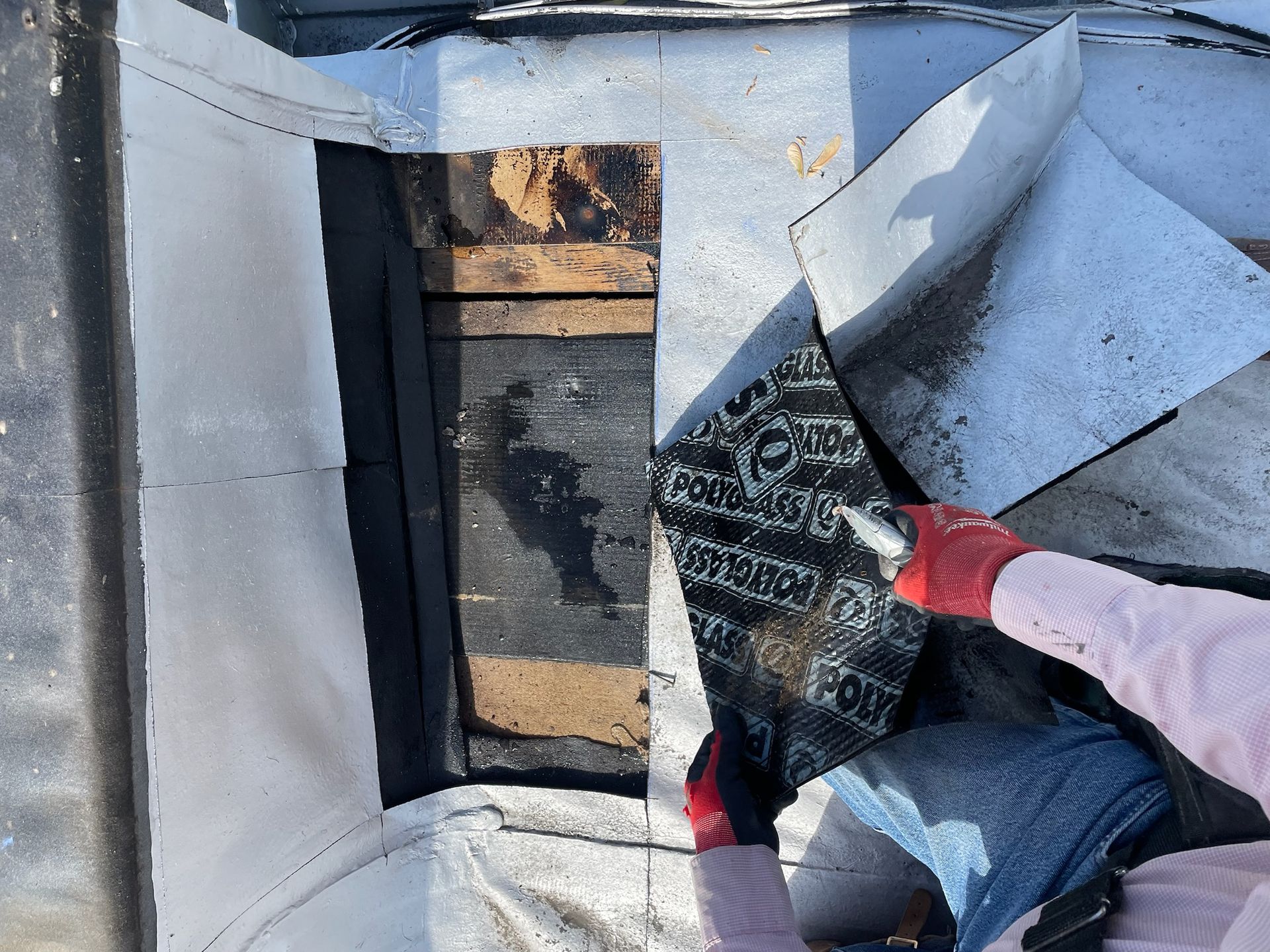

Worker showing Part of rooftop with removed membrane wet and damaged area

Roof investigation reveals water under the modified bitumen.

Button

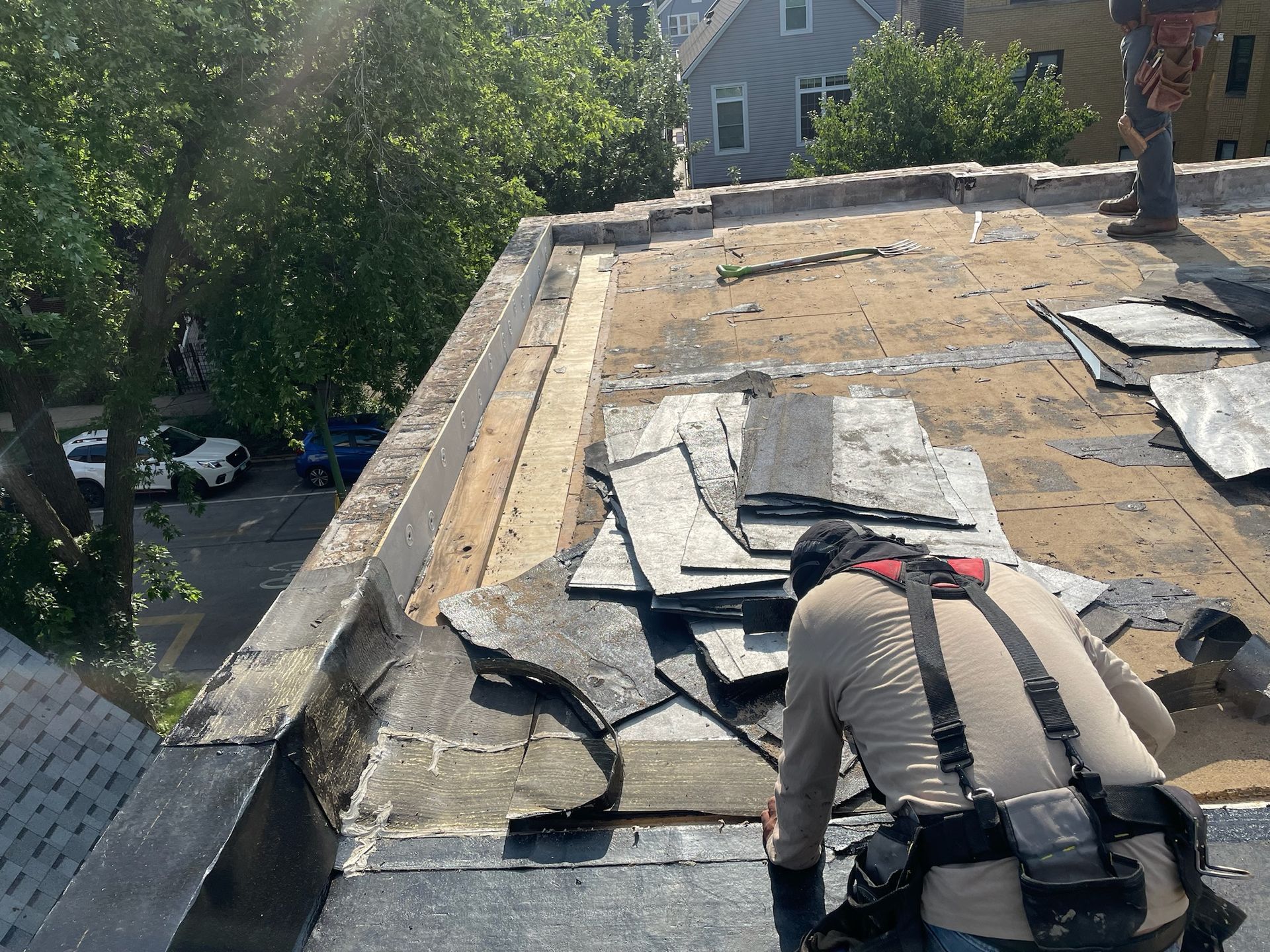

Worker tearing off rooftop surface exposing damaged roof wood material

Complete roof tear off.

Button

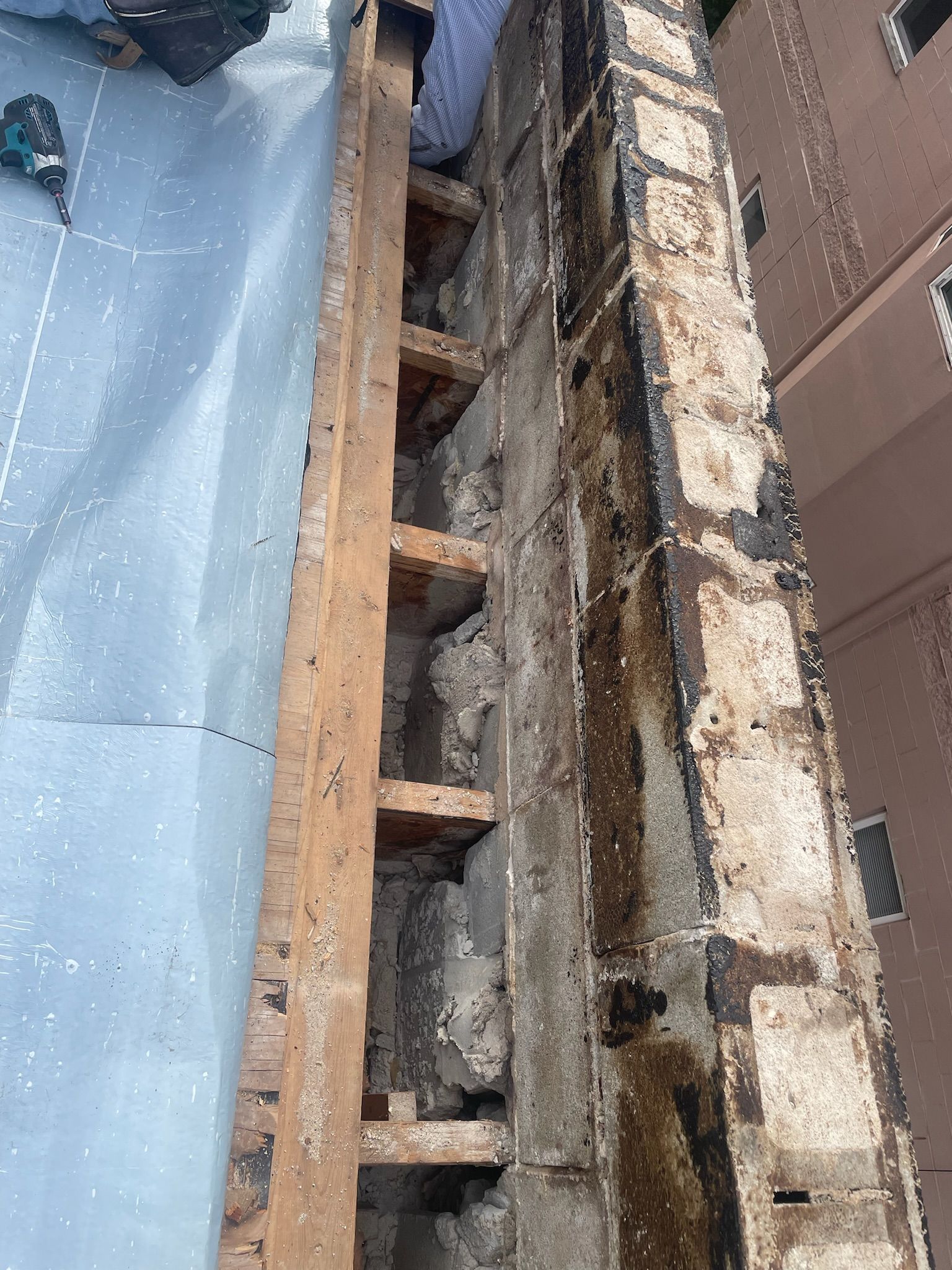

Damaged roof edge with exposed rotting wood

Roof tear off reveals TJIs embedded in masonry wall are showing signs of moisture migrating from the masonry into the TJIs.

Button

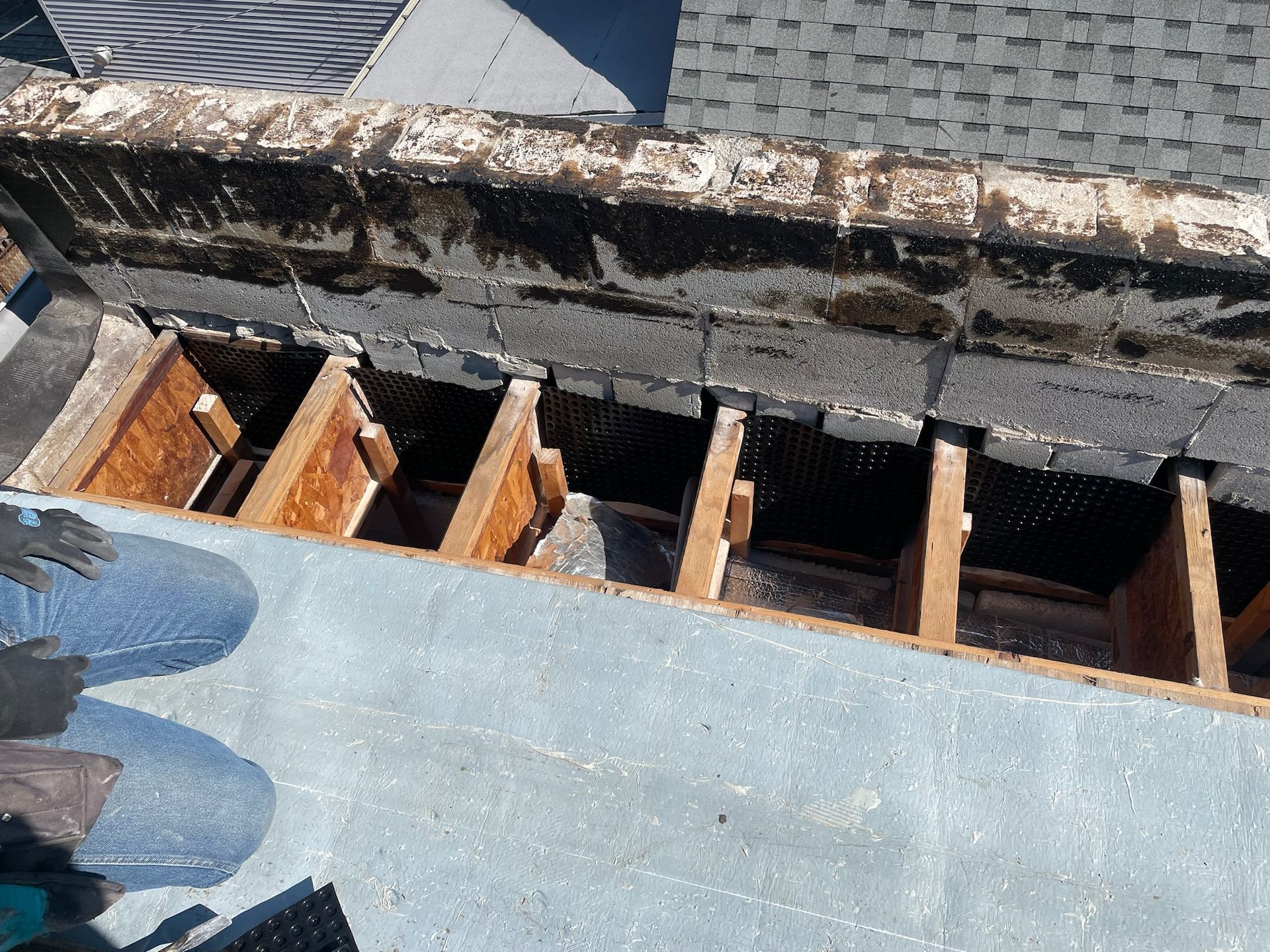

Damaged rooftop with exposed wooden trusses

More TJIs revealed embedded in masonry.

Button
Worker installing plywood boards on top of trusses

Roofers install WickRight dimple board against the parapet wall to separate the masonry from the insulation.

Button

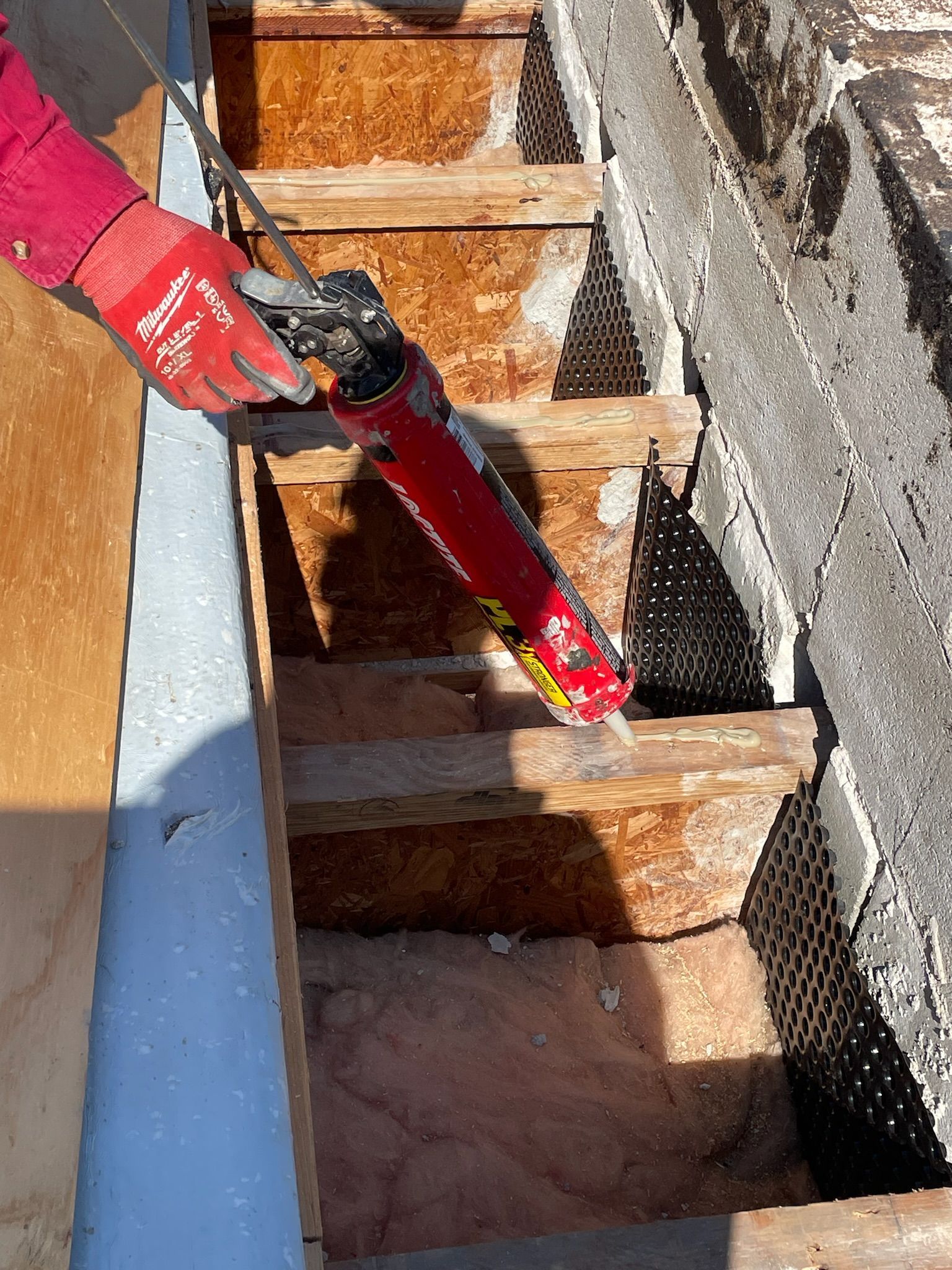

Worker applying caulk on top of trusses

Roofer applies polyurethane sealant to TJI to form a solid bond between the TJI and the plywood decking to be installed.

Button
Worker drilling nails into trusses

Roofer screws down top rail of TJI that has separated from the rest of the assembly.

Button

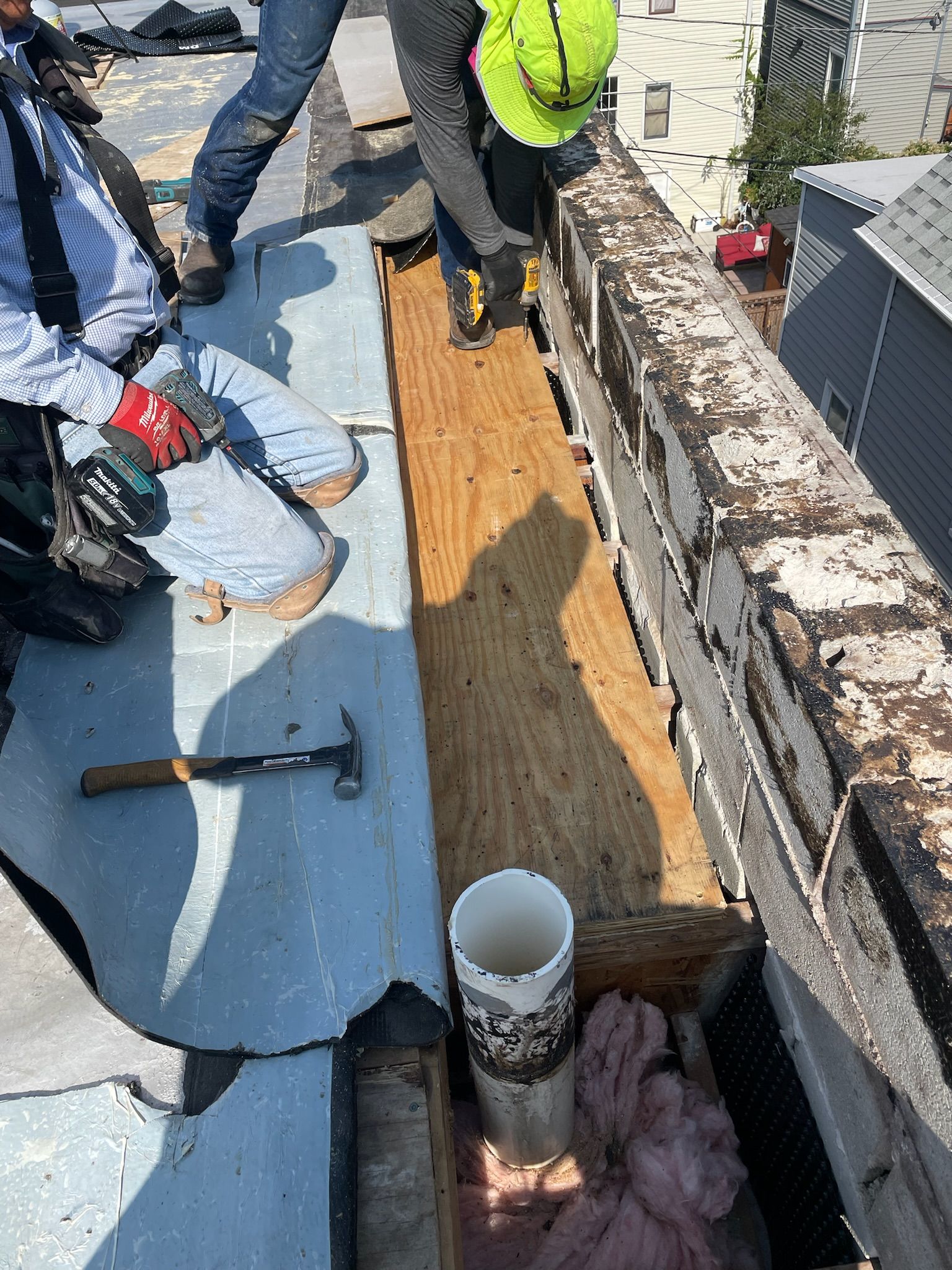

Workers on a rooftop done installing plywood base on top of trusses

Preparing to install WickRight Roof Vent – Roofers have left a one inch gap in the plywood roof sheathing to install WickRight Roof Vented into against the parapet wall.

Button

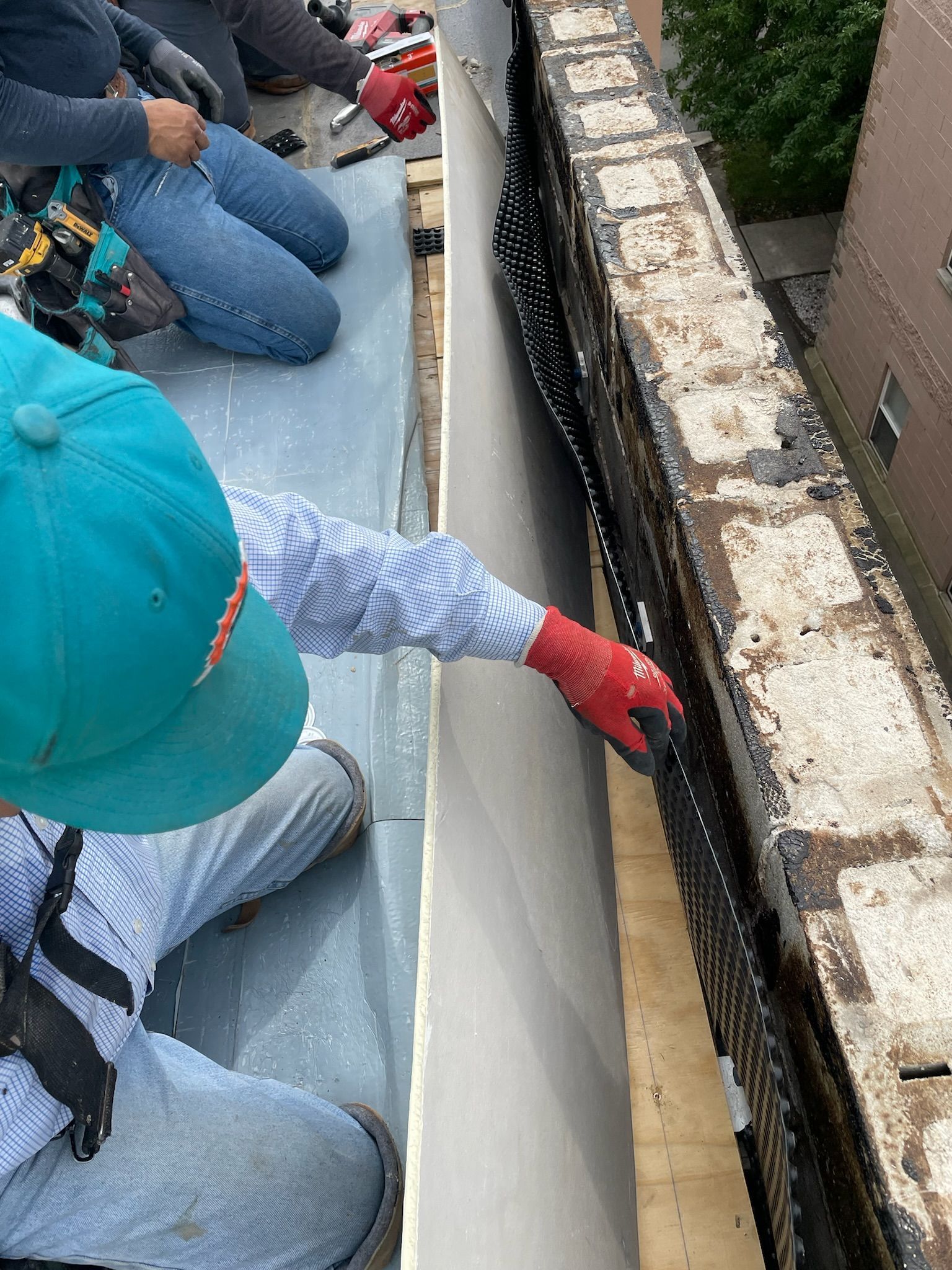

Workers placing dimple board against parapet wall

Roofers install WickRight Roof Vent,  dimple board and polyiso HD coverboard, against the parapet wall to provide a pathway for moisture vapor to exit the roof and keep the TJIs dry.

Button

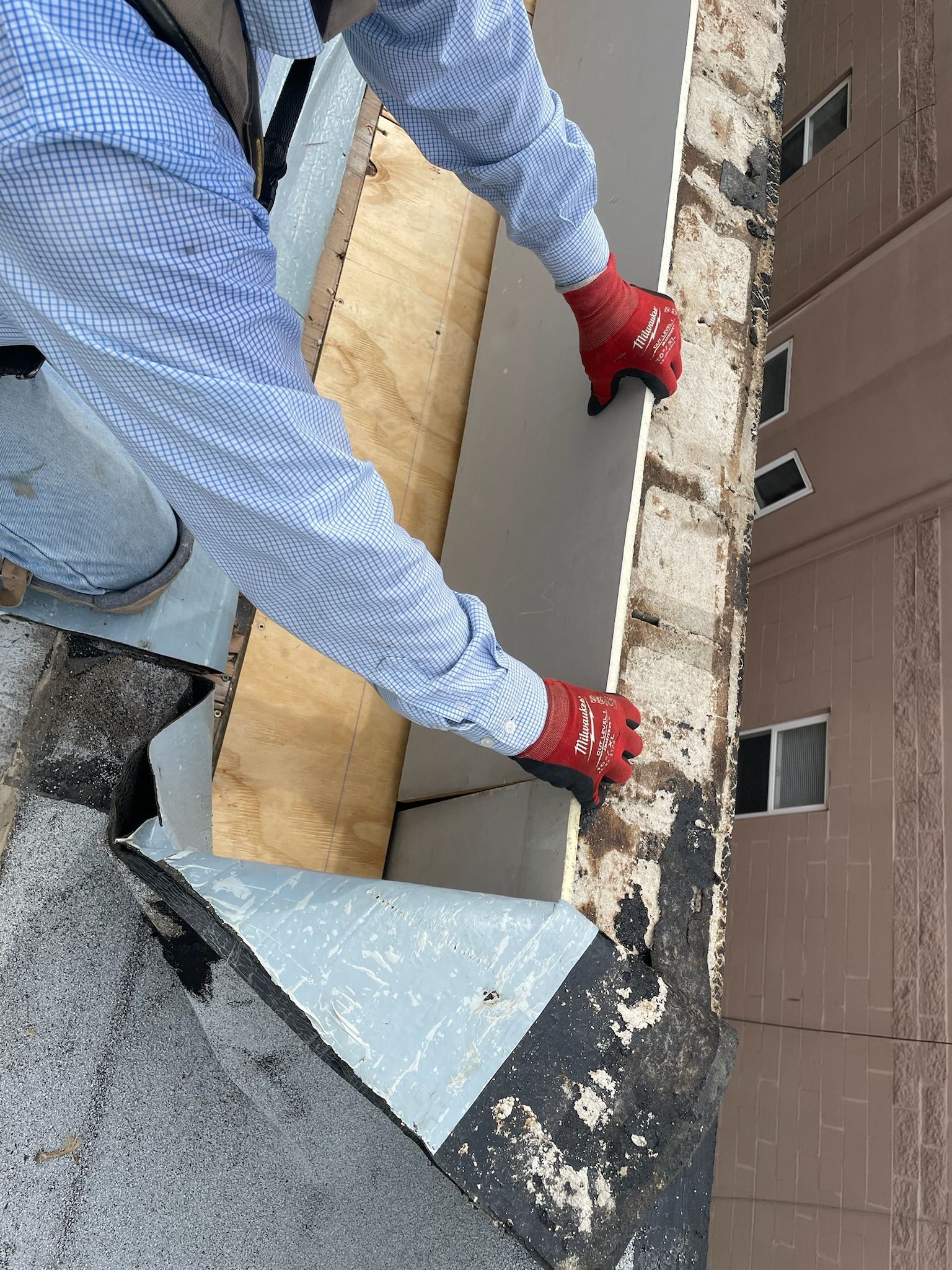

Worker installing insulation on a building exterior wall

Roofer installs WickRight Roof Vent on parapet wall.

Button

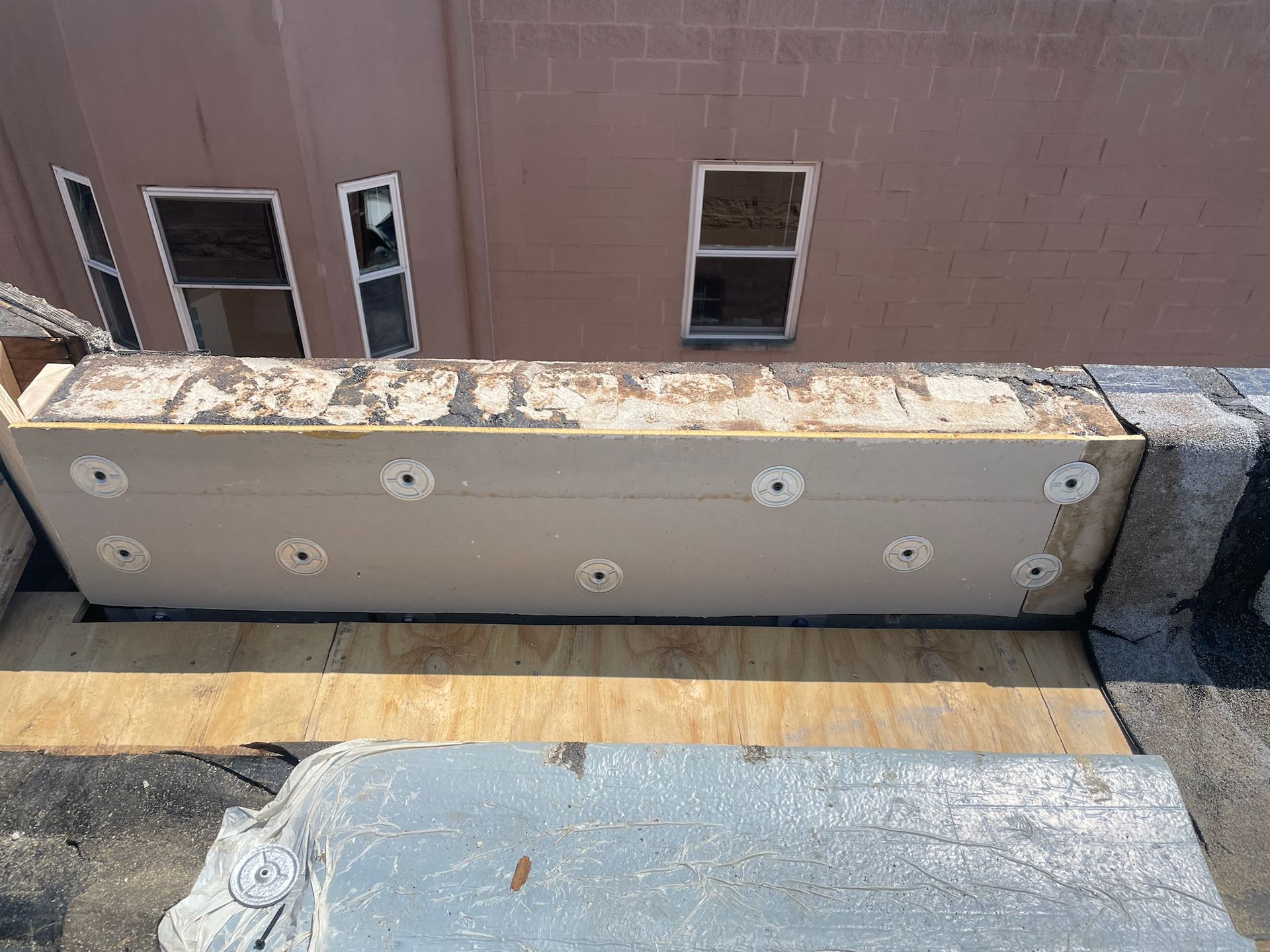

Parapet wall with insulation installed against it

WickRight Roof Vent installed on parapet wall.

Button

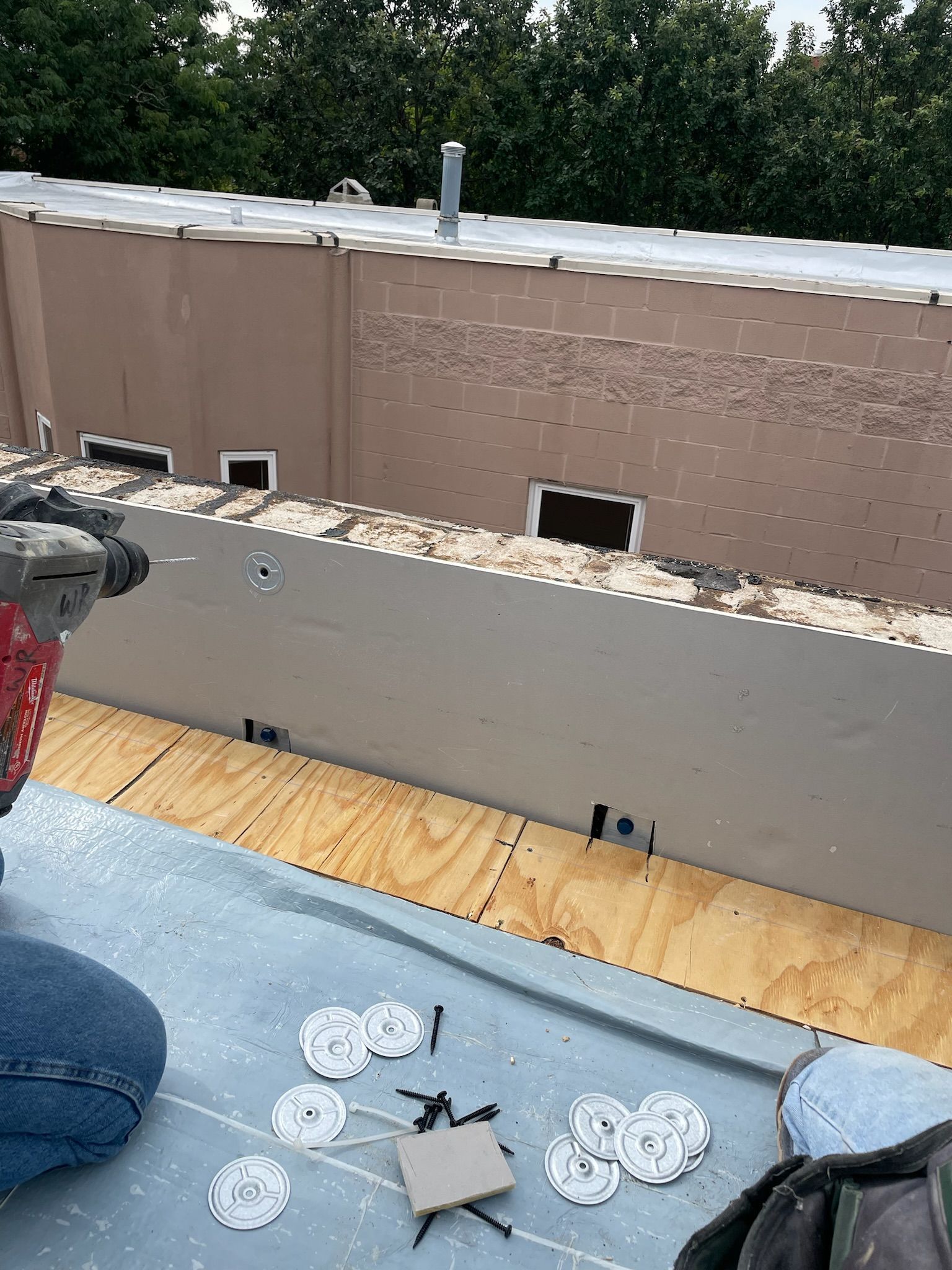

Worker drilling screws and washers to insulation wall against parapet wall

WickRight Roof Vent installed on parapet wall.
