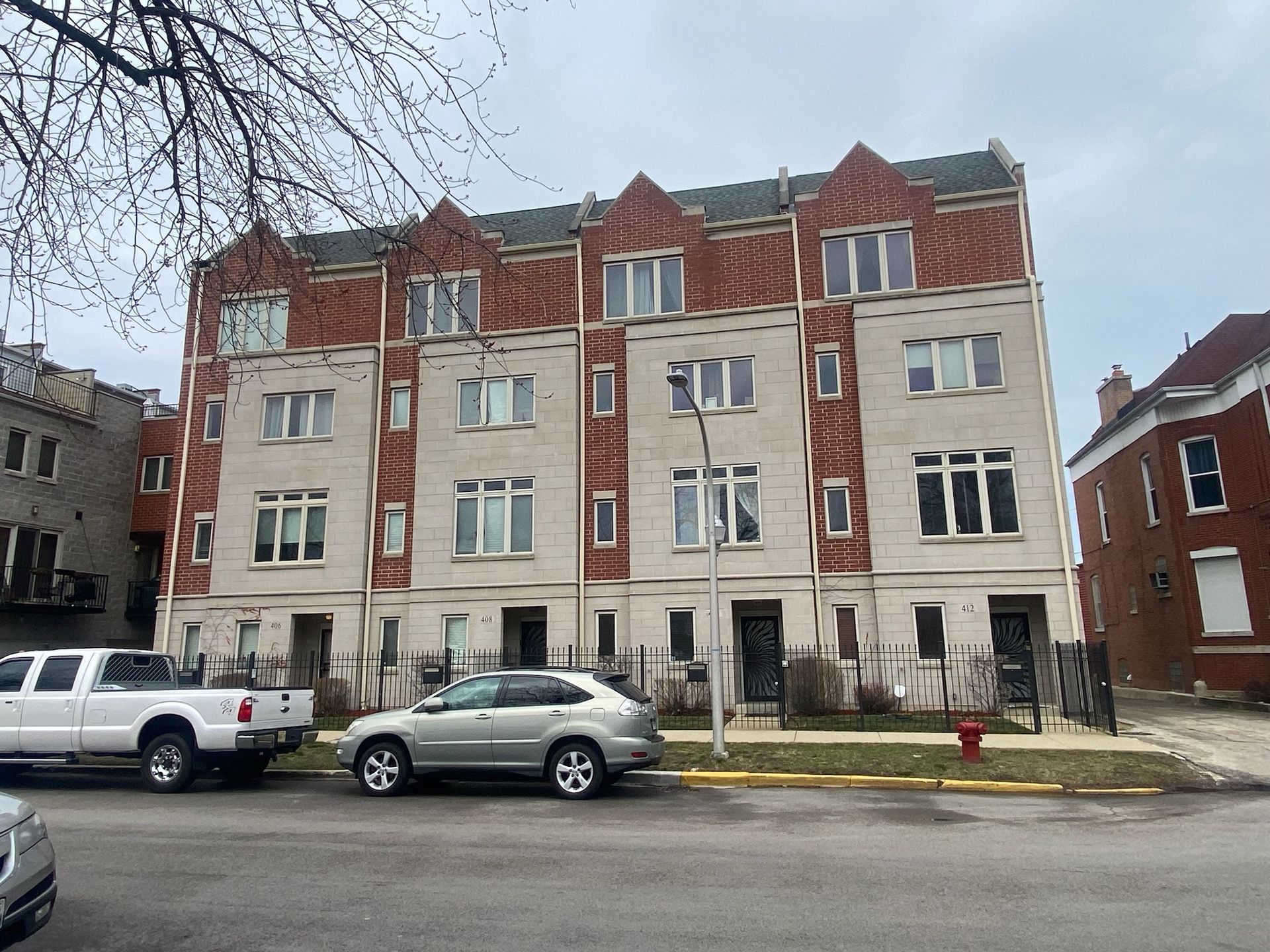

Leaking 14-unit condo building constructed of brick, block and Renaissance Stone.

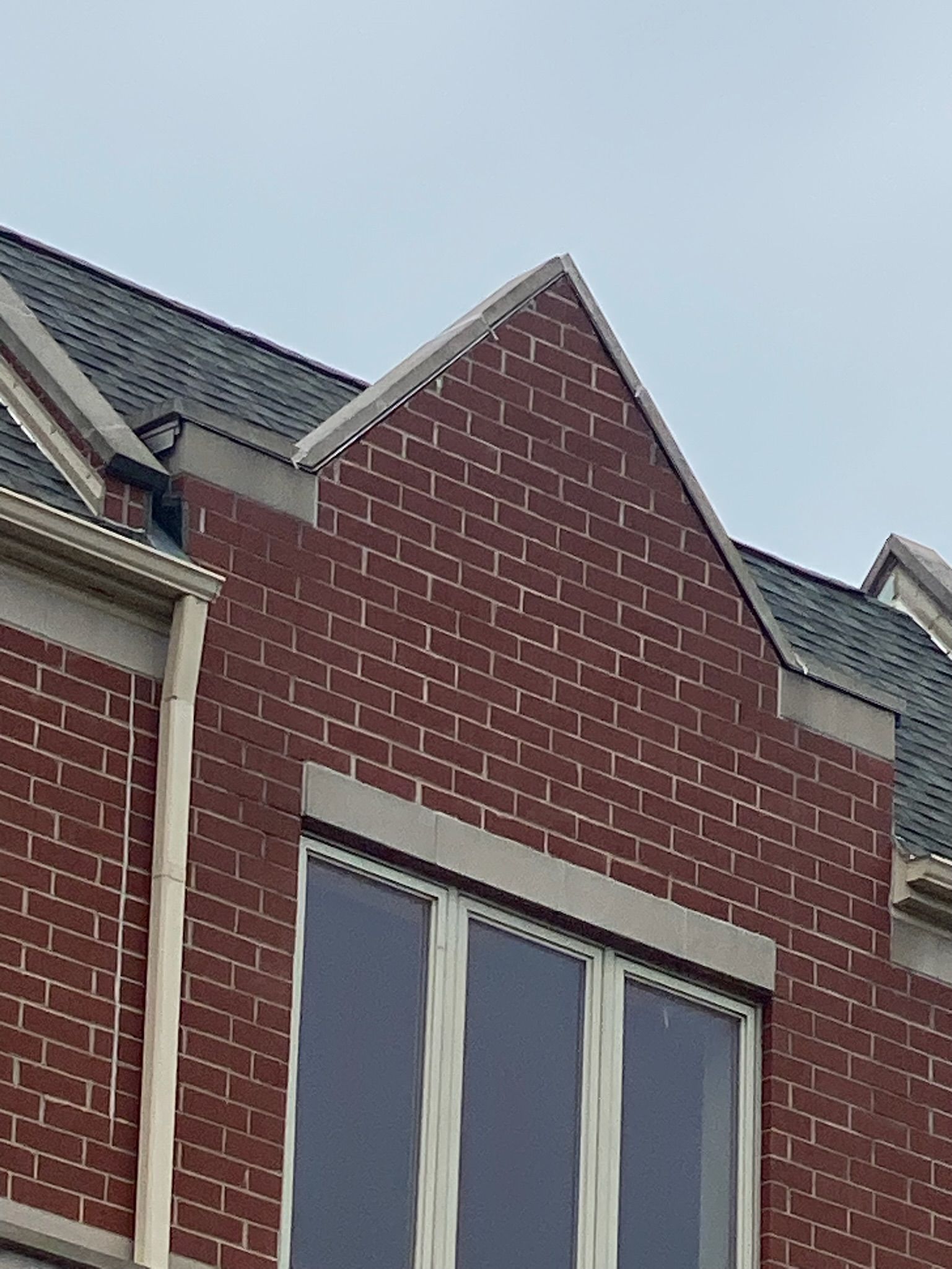

Four and a half story gabled peaks on building leak constantly. Capstones on the gables are limestone.

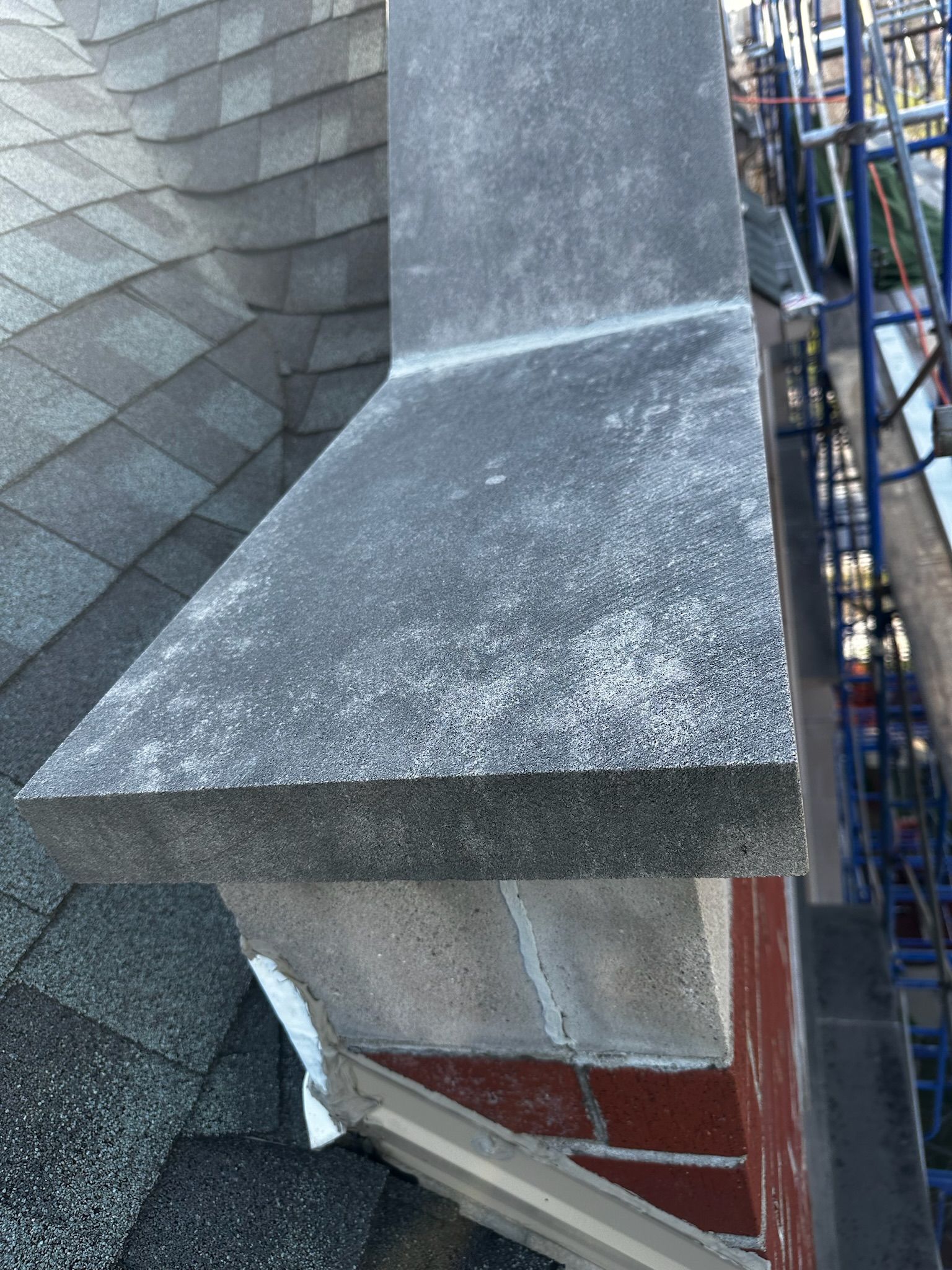

Close up look at limestone capstone on gabled peak.

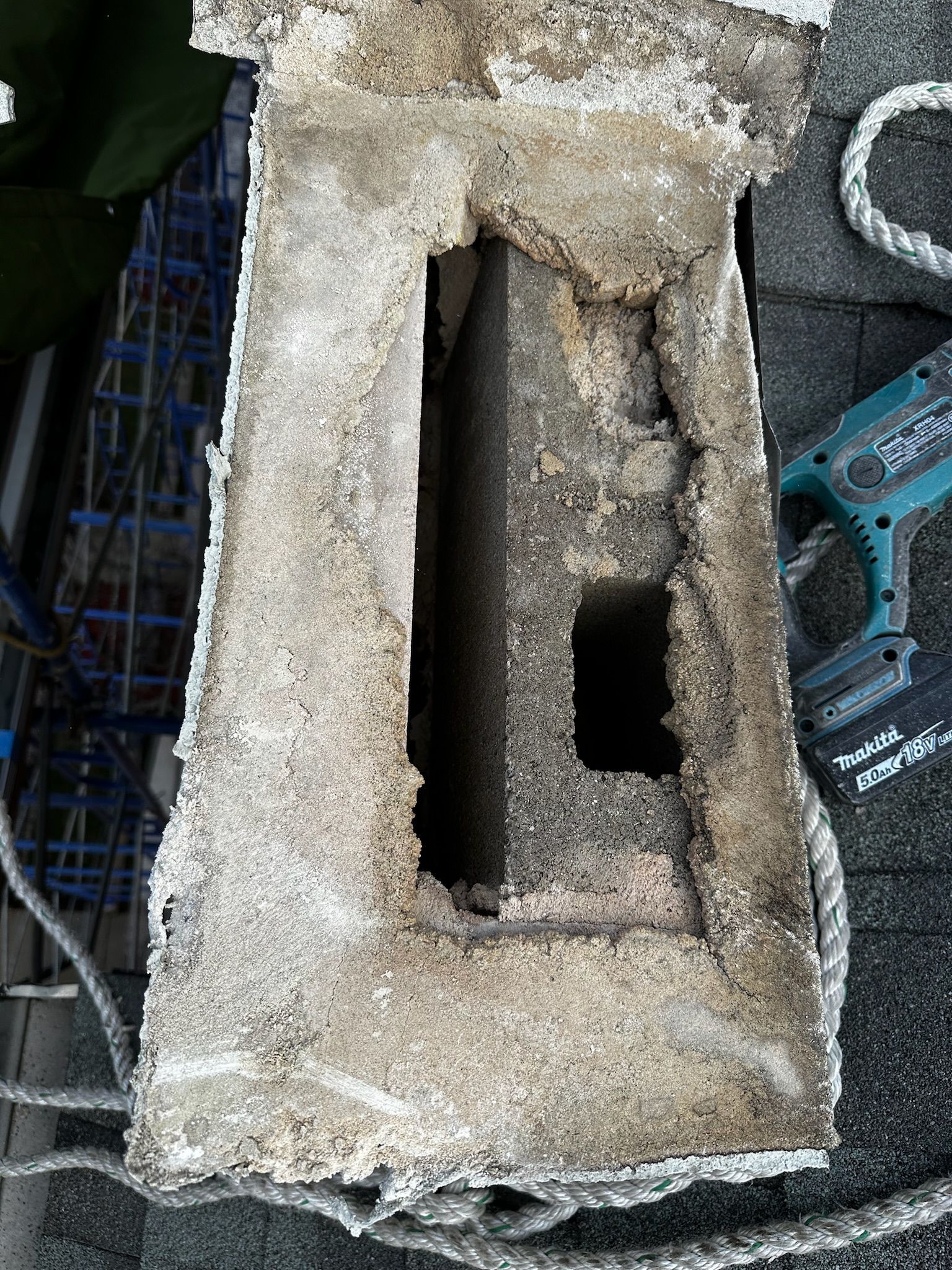

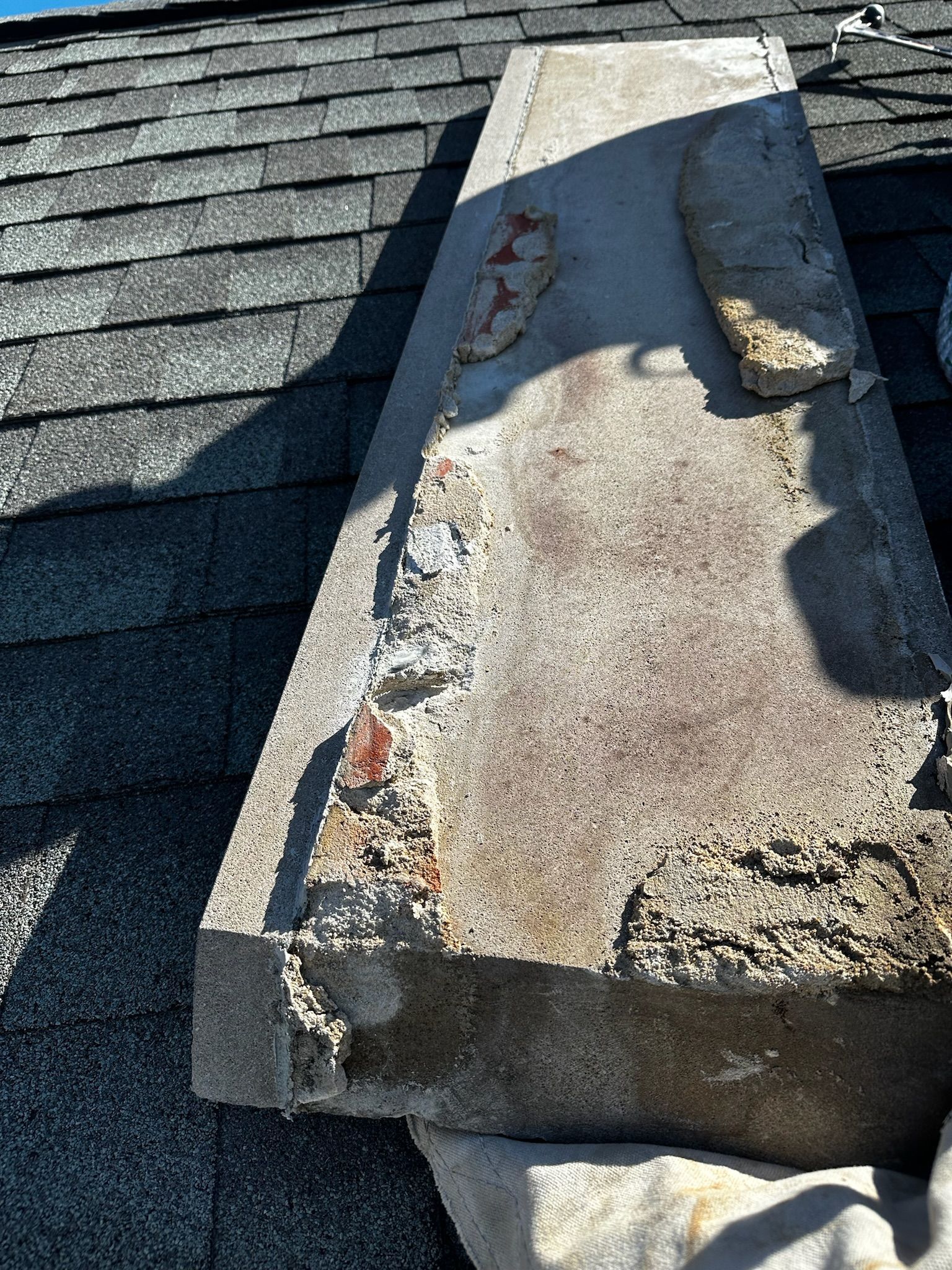

Bottom of limestone capstone removed from peak.
Removal of capstone revealed that no flashing had been installed under the capstone to protect the wall.

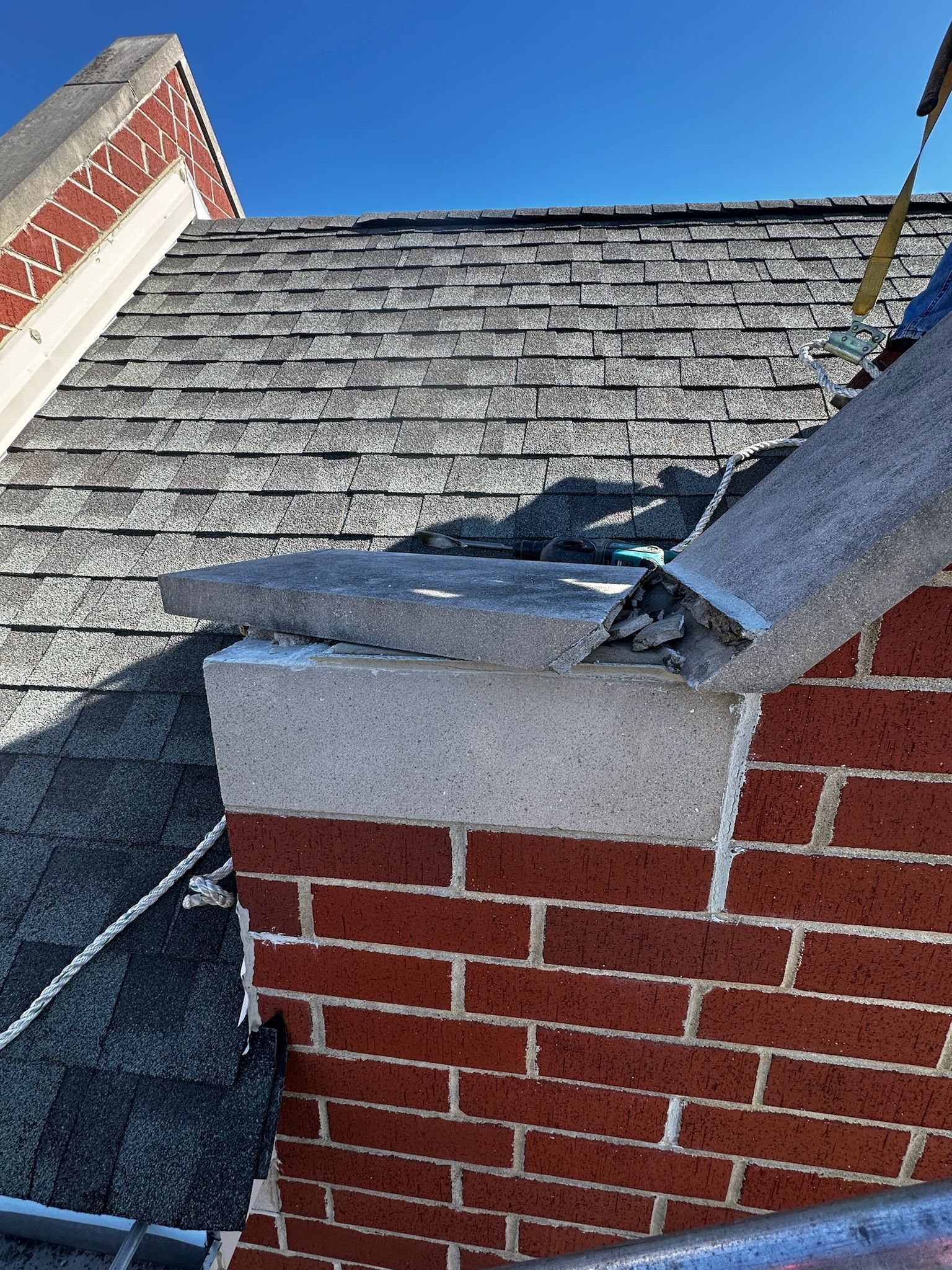

Damaged gable to horizontal capstone junction lets even more rain into the building.

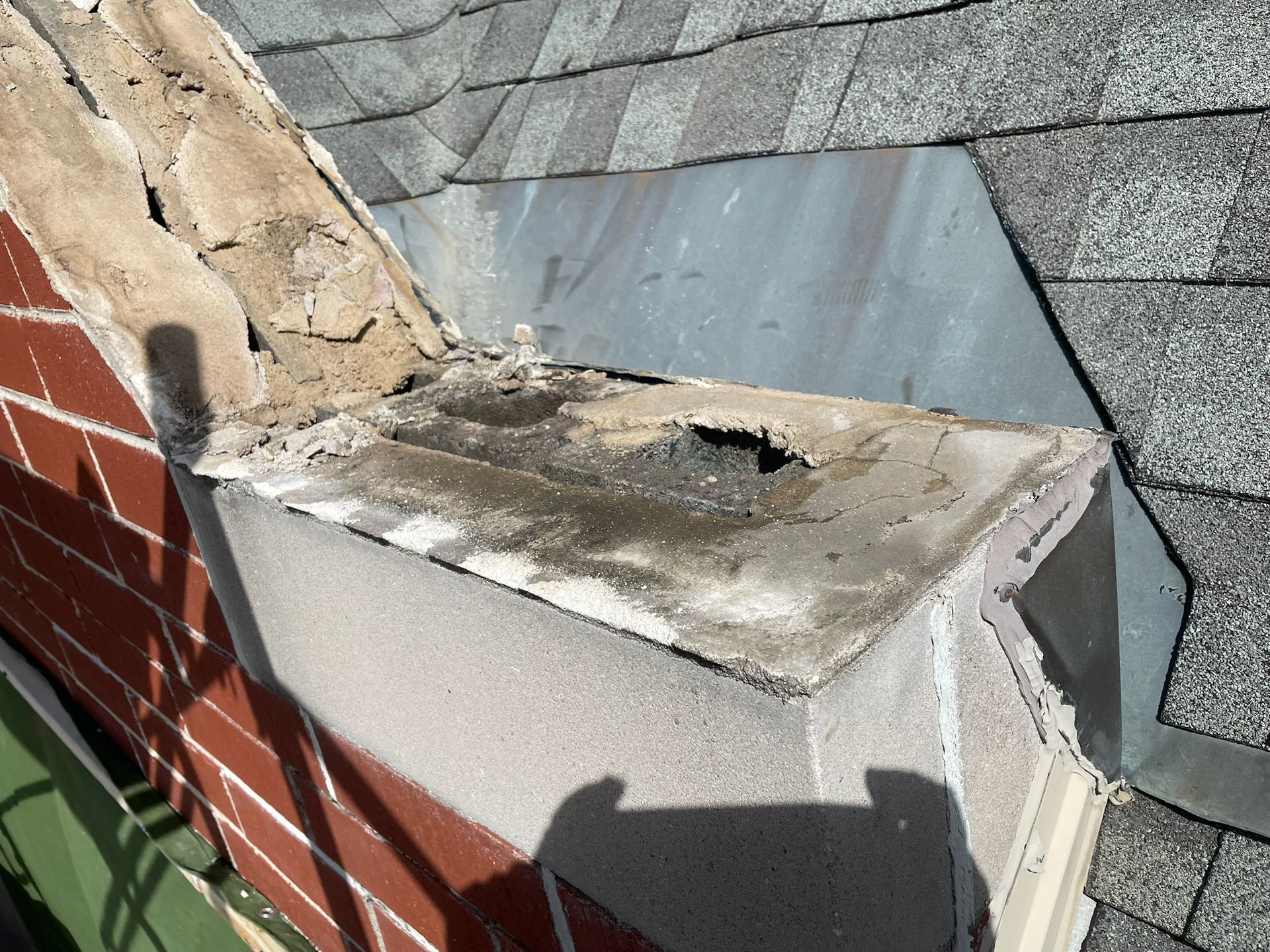

Another look at the top of the exposed wet parapet wall.

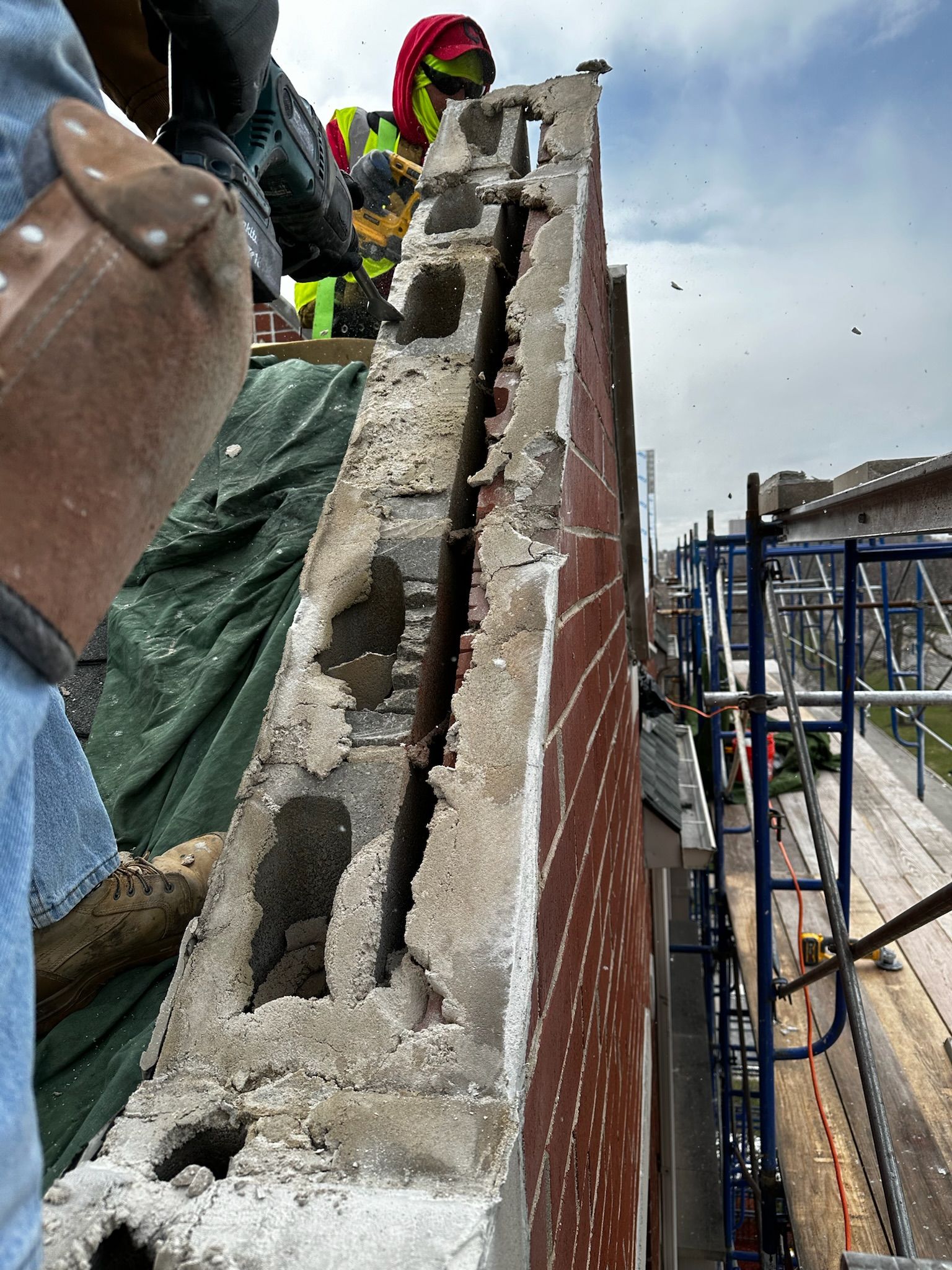

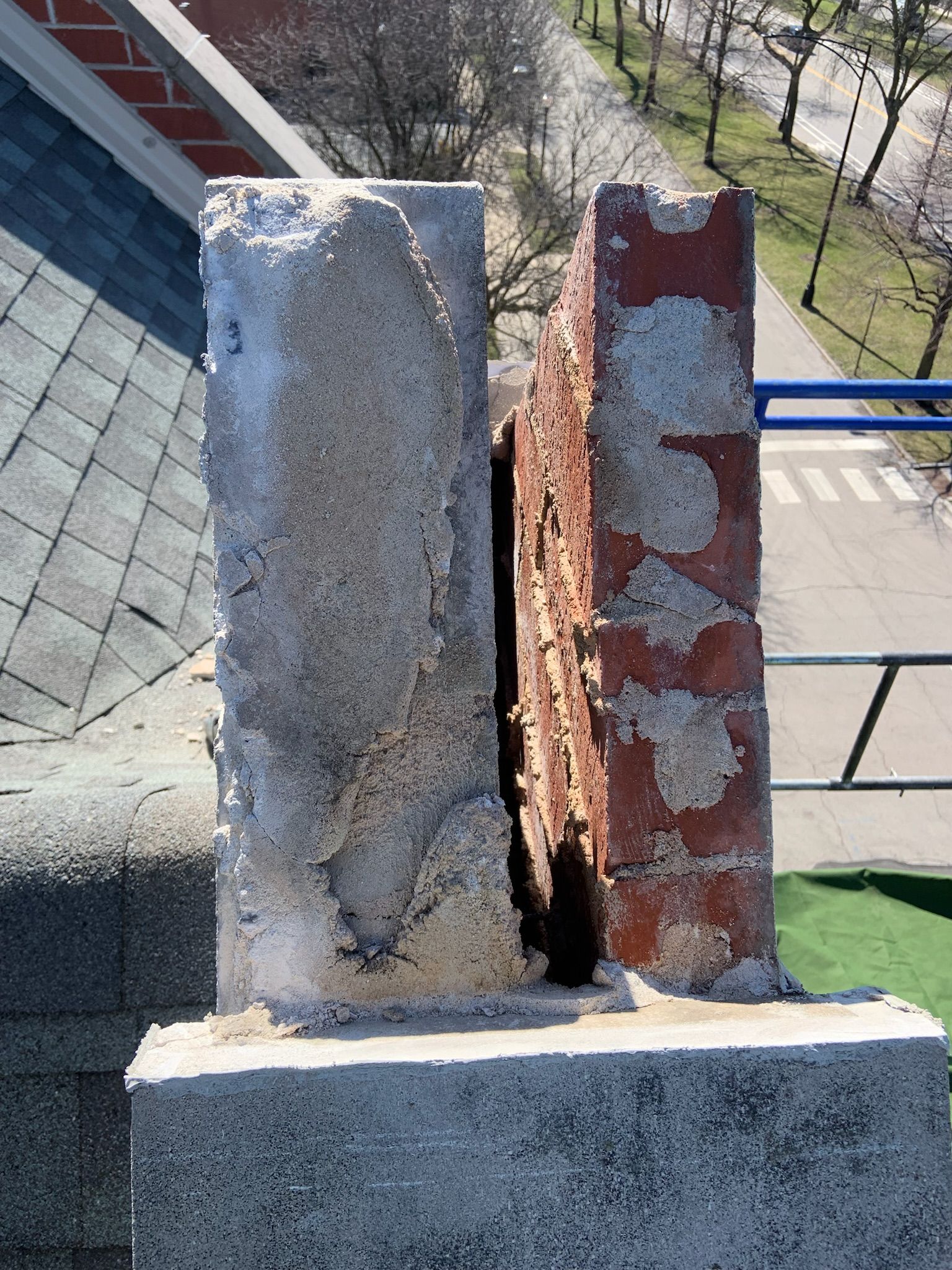

Exposed gable reveals no flashing installed to protect the interior of the wall and no brick ties were installed when the building was built to stabilize the brick facade.
Brick and block walls fully grouted prior to installing brick times to stablized the brick facade and installing WickRight vapor permeable membrane and Vented Flashings to vent and protect the gable from additional moisture intrusion.
